Flexible Textile HD-EMG Grids

Thanks to the flexibility of the used fabric, the electrodes form to the skin perfectly, reducing the probability of movement artefacts due to the rigid material of current HD-EMG grids on the market. This makes it possible to utilise the SAGA system to study dynamic movements, such as walking or jumping, improving signal quality and reducing the need for artifact removal.

	Textile HD-EMG grids Textile HD-EMG grids are very suitable for use on contracting muscles, as they are flexible yet durable. The Textile HD-EMG grids come with Ag/AgCl electrodes, so that the signal quality remains stable over the course of the recording. The Textile HD-EMG grids have 32 or 64 channels, ordered in a 4×8, 8×8, or 6×11 topology, with an inter-electrode distance of 4 mm or 8.75 mm.
64-Channel (8×8) Textile HD-EMG Grids These 64-channel grids come in an 8×8 topology. The large grids have an IED of 8.75 mm and diameter of 4 mm. The small grids have an IED of 4 mm and a diameter of 2 mm. Use the large grids to cover muscles of the back and leg, and use the smaller grids for the muscles of the hand, face, and foot.
	64-Channel (6×11) Textile HD-EMG Grids These 64-channel grids come in an 6×11 topology. The large grids have an IED of 8.75 mm and diameter of 4 mm. The small grids have an IED of 4 mm and a diameter of 2 mm. Use the large grids to cover longer muscles of the arm, back, and leg; and use the smaller grids for the muscles of the hand, face, forearm, and foot.
Easy To Customize Follow the cutting lines along the middle of the grids to make two 32-channel, fully-functional, Textile HD-EMG Grids. This allows for further customization of the grids to match your research needs.

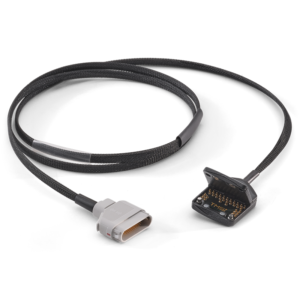

	Textile HD-EMG Grid Adapter Cable The Textile HD-EMG grid adapter cable contains spring-loaded pogo pins. These are the interface between the Textile HD-EMG grid’s Ag/AgCl traces and the cables running to the amplifier. The spring mechanism, together with the housing design, ensures that all pins apply sufficient pressure for a robust connection between the adapter cable and Textile HD-EMG grid. The cable from the adapter cable is a lightweight, actively shielded cable that ends in a single multiconnector, so that all 32 channels are connected to the amplifier using a single connector.
Secure Fit Secure the cable anywhere on the body using the unique Textile HD-EMG Cradle. The cradle can be attached to 4 different sizes of straps to fit around different limb sizes. This easy-to-use cradle holds the adapter cable in place during all movements.

Watch the video for a product demonstration
