Legato® 210 / 210P Syringe Pump
Legato® 210 / 210P Syringe Pump
, , ,

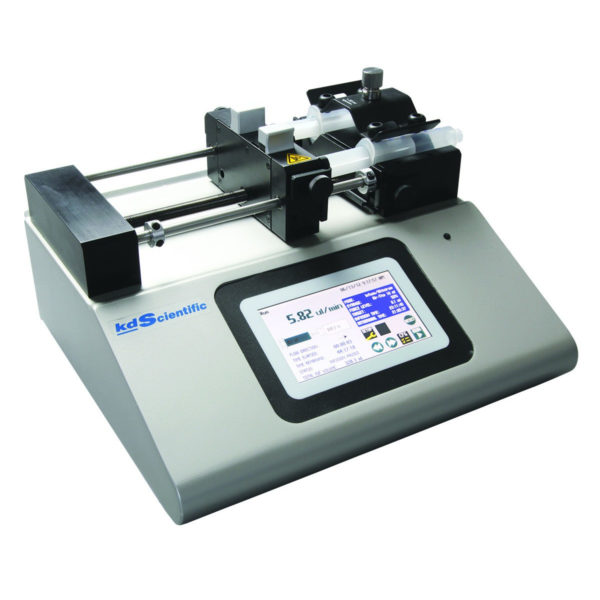

Legato 210 Dual Syringe, Programmable Touch Screen, Infusion/Withdrawal Pump

Infuse/withdraw Syringe pump. Holds 2 syringes This unit supports infuse only, withdraw only, infuse/withdraw, withdraw/infuse and continuous mode. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Product Enquiry

Please fill out the form if you would like to enquire about this product.

"*" indicates required fields

Name
Please indicate the name of your University or company
We would really like to stay in touch, so that we can inform you about new products, training events and other news that we think might be of interest to you. To comply with data protection regulations, we can only contact you in this way if we have your explicit permission to do so. By ticking the opt in box you are giving consent for Linton Instrumentation to process your data and you understand that you have the right to withdraw it at any time.*

KD Scientific Legato 210 / 210P Dual Syringe, Programmable Touch Screen, Infusion/Withdrawal Pump

Infuse/withdraw Syringe pumps. Accomodates 2 syringes. The Legato 210 supports infuse only, withdraw only, infuse/withdraw, withdraw/infuse and continuous mode. User definable flow rates with selectable target volume or time values to control the total infusion volume.

The Legato™ 210P Programmable models allows user defined configurations/programs of up to 800 steps. Up to 40 programs of 20 steps each step can be stored in memory.

A version with 0-10 VDC Analog Control is also available.

Ordering Information

Code Product
788210 Legato® 210 Dual Syringe, Touch Screen, Infusion/Withdrawal Pump
788212 Legato® 210P Dual Syringe, Programmable Touch Screen, Infusion/Withdrawal Pump
788212-AI Legato® 210AC Dual Syringe, Programmable Touch Screen, Infusion/Withdrawal Pump with Analog Control
Features:
  • Holds one or two syringes from 0.5ul to 140ml
  • High resolution color touch screen
  • Real time clock
  • Unparallel ease of use
  • Touch pad “lock” feature
  • LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 75 lbs linear force
  • Advanced microstepping techniques
  • Built in RS485 interface
  • USB port
  • I/O & TTL interface
  • Continuous mode of operation
  • Spill dam
  • Programmable (210P and 210AC Models)



Technical Literature

Legato 200 Series Manual
Legato 200 Series Quick Start Guide
KDS Legato® 210 Datasheet
KDS Legato® Family Datasheet
Declaration of Conformity for the Legato 200 Series Syringe Pumps
SKU: LEGATO210 Categories: , , , Tags: , , , , , ,
Accuracy: ± 0.35%
Reproducibility ± 0.05%
Syringes (Min/Max) 0.5 ul to 140ml
Flow Rate: Minimum (0.5 ul syringe): 5pl/min
Maximum (140ml syringe): 220.97 ml/min
Display 4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory Stores all Settings
Connectors: RS232 – 9Pin D-Sub Connector
RS485 – IEEE-1394 6 pos
USB – Type B
I/O & TTL – 15 pin D-Sub Connector
Linear Force (Max) 34 kg (75 lbs) @ 100% Force Selection
Drive Motor 1.8 degree Stepper Motor
Motor Drive Control Microprocessor with 1/16 microstepping
Number of Microsteps
per one rev.of Lead Screw		 6,400
Step Rate – Minimum 27.5 sec/ustep
Step Rate – Maximum 26 usec/ustep
Pusher Travel Rate – Minimum 0.36 um/min
Pusher Travel Rate – Maximum 190.80 mm/min
Power 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions 8.89 x 25.4 x 27.94 cm (3.5 x 10 x 11 in)
Weight 4.9 Kg (10.75 lb)
Operating Temperature 4 degree’C to 40 degree C
(40 degree F to 104 degree F)
Storage Temperature -10 degreeC to 70 degree C
(14 degree F to 158 degree F)
Humidity 20% to 80% RH non condensing
Mode of Operation Continuous
Classification Class 1
Pollution Degree 1
Installation Category 11
Regulatory Certification CE, UL, CSA, CB Scheme, EU RoHS
