KDS 310 Plus Nano Legacy Syringe Pump
The KDS310 Nano Pump is used exclusively with micro syringes. Small size, remote control and a rugged mounting arm make it ideal for use with micromanipulator, stereotaxic and other clamping devices.
Discontinued – Recommended alternative Legato 130
Product Enquiry
If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.
Product Enquiry
Product Enquiry
Please fill out the form if you would like to enquire about this product."*" indicates required fields
KDS 310 Single Syringe, Infusion/Withdrawal Pump
The KDS310 Nano Pump is used exclusively with micro syringes. Small size, remote control and a rugged mounting arm make it ideal for use with micromanipulator, stereotaxic and other clamping devices.

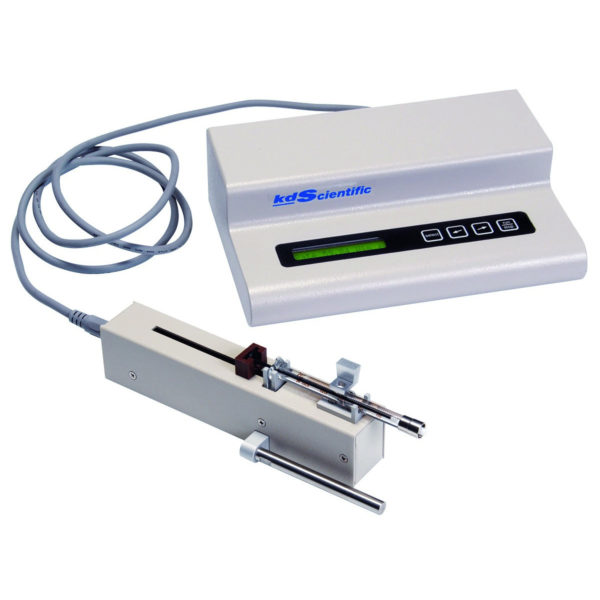

The single syringe infusion/withdrawal pump consists of a controller and a remote pump head designed to use microliter syringes and deliver nanoliter volumes at low flow rates. The microprocessor based controller uses a bright display and membrane keypad with a simple, menu-prompt system for easy setup. The pump features preset rate and volume control. The dispense volume is displayed continuously and the pump shuts off automatically when the preset volume is dispensed.
Features
- Mini size pump
- 0.5 to 250 µl microlitre syringe
- Simple menu-driven setup with bright display and keypad
- select syringe size from displayed table
- dispense volume
- dispense flow rate
- infusion or withdrawal
- Dispense volume is displayed and has automatic shutoff at completion
- Easy syringe loading with pusher block fast forward/fast reverse feature for rapid adjustments.
- Last settings stored in memory
Ordering Information
| Code | Product |
| 789311 | KDS 310 Plus Nano Legacy simple Syringe, Infusion/Withdrawal Pump – 220 VAC |
| 789311Y | KDS 310 Plus Nano Legacy simple Syringe, Infusion/Withdrawal Pump – 220 VAC with footswitch connection (footswitch sold seperately) |
Technical Literature
| KDS 310 Plus Manual |
| KDS Legato™ 310 Plus Datasheet |
| KD Scientific Full Line Catalog |
| Declaration of Conformity for the KDS 100 and KDS 310 Series Syringe Pumps |
| Max. No. of Syringes | One |
| Dimensions: | Pump 16.5 x 3 x 4.5 cm (0.16 kg)Controller 23 x 15.2 x 7.6 cm (2 kg)Connection Cable 180 cmMounting Rod Diameter 0.32 in (8 mm) |
| Linear Force | 2 lb |
| Max Step Rate | 916 ½ steps/sec |
| Min Step Rate | ½ step/4sec. |
| Accuracy | ± < 1% |
| Options | Footswitch interface |
