LASA ECG delineation analyzer module
Additional modules are add-ons that can extend the LASA software with complementary features. They need to be ordered separately.
ECG delineation analyzer module provides an automatic delineation of ECG’s characteristic points and waves on averaged ECG waveforms. It uses averaging algorithms to provide high rejection of noise in the signal as well as probabilistic approaches to provide robust localization of the beginning and end of P and T waves and QRS complex. Mathematical and individual QT correction are available directly in the module. This module is available on all product ranges and needs to be ordered separately.
- Events:
- Automatic detection of fiducial points (P, Q, R, S, T…)
- Begin / end of P and T wave and QRS complex
- Parameters:
- Automatic calculation of ECG intervals (R-Ri, P-Ri, QRSi, Q-Ti, S-Ti, Tp-e) in ms of averaged ECG waveforms
- P, T waves durations (ms)
- Q-Tic (ms, available with a choice of 7 correction formulas)
- P-R and S-T segments (mV)
- P, QRS, T amplitudes (mV)
- P, QRS, T areas (uV.s)
- Detection Score (% of exploited signal)
Applications

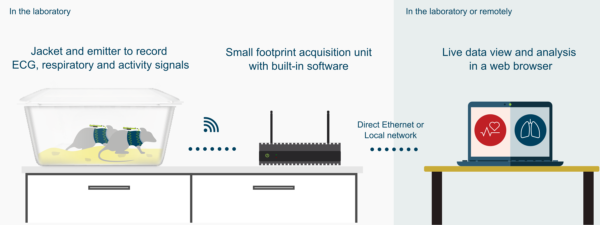

Application areas for the DECRO system (click the links below to visit the application section of the Etisense website)
