Legato 950 OEM Syringe Pump
Based on the Legato® 100 series syringe pump design, the Legato® 950 is ideal for applications interfacing to a computer. Accommodates syringes 0.5 μl to 60 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.
Product Enquiry
If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.
Product Enquiry
Product Enquiry
Please fill out the form if you would like to enquire about this product."*" indicates required fields

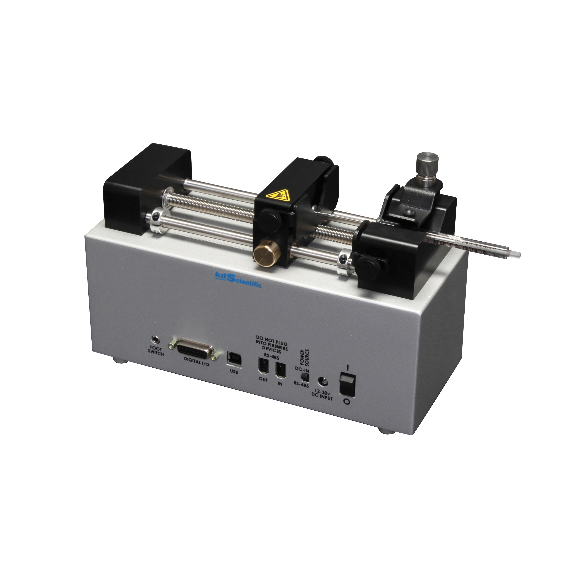

Legato® 950 OEM Syringe Pump
Single Syringe, Infusion/Withdrawal OEM Module
Based on the Legato® 100 series syringe pump design, the Legato® 950 is ideal for applications interfacing to a computer. Accommodates syringes 0.5 μl to 60 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.
Features
- ± 0.5% Accuracy
- 0.5 μl to 60 ml syringes
- Continuous mode of operation
- Programmable with ASCII commands
- Encoder stall detection
- USB Interface
- TTL Interface
- Customizable syringe mechanisms available
- Customizable chassis designs available
- Advanced micostepping techniques
- Linear force 30 lbs (13.6 kg)
- CE, CB Scheme, EU RoHS compliant
Technical Literature
| Legato OEM 950 Series Manual |
| KD Scientific Full Line Catalog |
| Declaration of Conformity for the Legato 100 Series Syringe Pumps |
| Accuracy | ±0.5% |
| Syringes (Min/Max) | 0.5 µl to 60 ml |
| Flow Rate | Minimum (0.5 µl syringe): 1.28 pl/min
Maximum (10 ml syringe): 25.99 ml/min Maximum (60 ml syringe): 88.28 ml/min |
| Non-Volatile Memory | Stores all Settings |
| Connectors | RS485 – IEEE-1394 6 pos
USB – Type B I/O & TTL – 15 pin D-Sub Connector |
| Linear Force (Max) | 13.6 kg (30 lb) @ 100% Force Selection |
| Drive Motor | 0.9 Stepper Motor |
| Motor Drive Control | Microprocessor with 1/16 microstepping |
| Number of Microsteps per one rev.of Lead Screw |
15,360 |
| Step Revolution | 0.069 µm/step |
| Step Rate – Minimum | 27.5 sec/µstep |
| Step Rate – Maximum | 26 usec/µstep |
| Pusher Travel Rate – Minimum | 0.15 µm/min |
| Pusher Travel Rate – Maximum | 159 mm/min |
| Power | 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse |
| Dimensions | 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in) |
| Weight | 2.66 kg (5.9 lb) |
| Operating Temperature | 4 degree C to 40 degree C (40 degree F to 104 degree F) |
| Storage Temperature | -10 degree C to 70 degree C (14 degree F to 158 degree F) |
| Humidity | 20% to 80% RH non condensing |
| Mode of Operation | Continuous |
| Classification | Class 1 |
| Pollution Degree | 1 |
| Installation Category | 11 |
| Regulatory Certification | CE, UL, CSA, CB Scheme, EU RoHS |
