The BAT-10 is the most versatile thermometer from Physitemp, with a wide temperature range and extensive choice of probes making it suitable for a diverse range of applications.

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Product Enquiry

Please fill out the form if you would like to enquire about this product.

"*" indicates required fields

Name
Please indicate the name of your University or company
We would really like to stay in touch, so that we can inform you about new products, training events and other news that we think might be of interest to you. To comply with data protection regulations, we can only contact you in this way if we have your explicit permission to do so. By ticking the opt in box you are giving consent for Linton Instrumentation to process your data and you understand that you have the right to withdraw it at any time.*

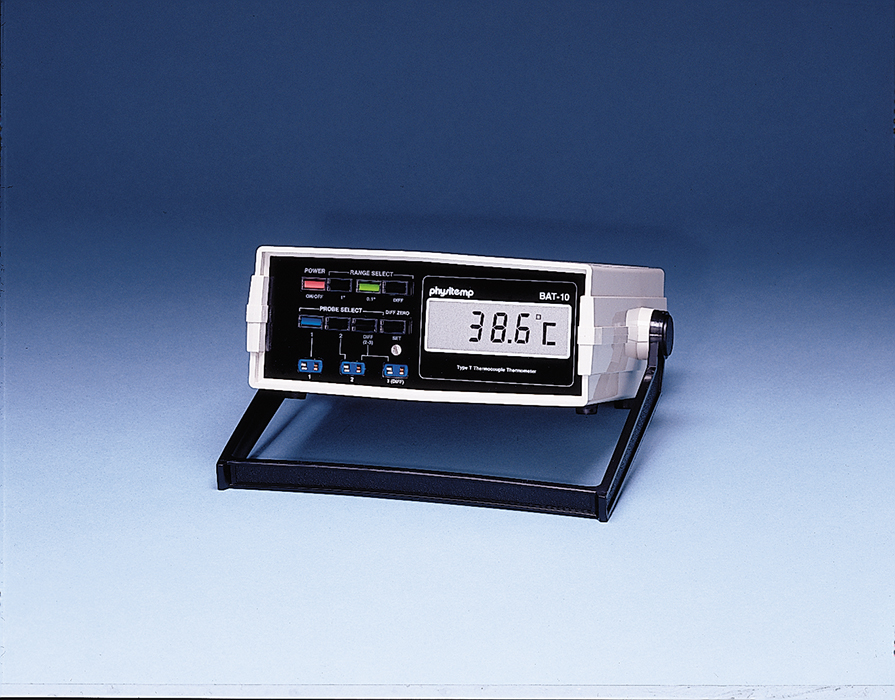

Physitemp BAT-10 Multipurpose Thermometer

The BAT-10 is the most versatile thermometer Physitemp have ever designed. Wide temperature range and extensive choice of probes can be used in applications as diverse as cryogenic measurements for blood banking and cryosurgery, skin temperature measurements in exercise experiments, liquid measurements in spectrophotometer cuvettes, melting points of plastics and all types of animal and insect temperature measurements. BAT-10 accuracy is NIST traceable and in each temperature range accuracy is the same as the resolution. For instance, in the 0.1°C range, accuracy is 0.1°C (± 1 least significant digit). Few digital thermometers will do this. In most instruments there is a difference of several tenths between specified accuracy and resolution. At physiological temperatures, where minute changes can be critical, the differential range allows readings to 0.01°C with 0.01°C accuracy.

Features:

  • Multiple inputs
  • Three ranges
  • NIST traceable accuracy
  • Resolution and accuracy as high as 0.01° C
SKU: BAT-10 Categories: , Tags: ,
Temperature Range -200° to +400°C, 1°C res. -100°C to 199.9°C, 0.1°C res., Differential range: -19.99°C to +19.99°C, 0.01°C res.
Resolution
Accuracy 1° range: 1°C ± least significant digit, 0.1° range: 0.1°C ± 1 least significant digit, diff. range: 0.01°C ± 1 least significant digit
Ambient Operating Range 15-45°C
Calibration Conformity Conforms to NIST tables – (monograph 175)
Sensors Type T Thermocouple

Power

Batteries 4 alkaline ”C” cells
Battery Life
Power Supply battery operated
Dimensions 8.5”W x 9”D x 3.5”H
Weight 3 lbs.

Input/Output

Inputs 3
Input Socket Type T
Analog Output 0mV at 0°C, 125mV at 40°C non-linearity <5% below 100°C
Readout 3fi digits, LCD
