PinPort™ for Catheters and Tubing

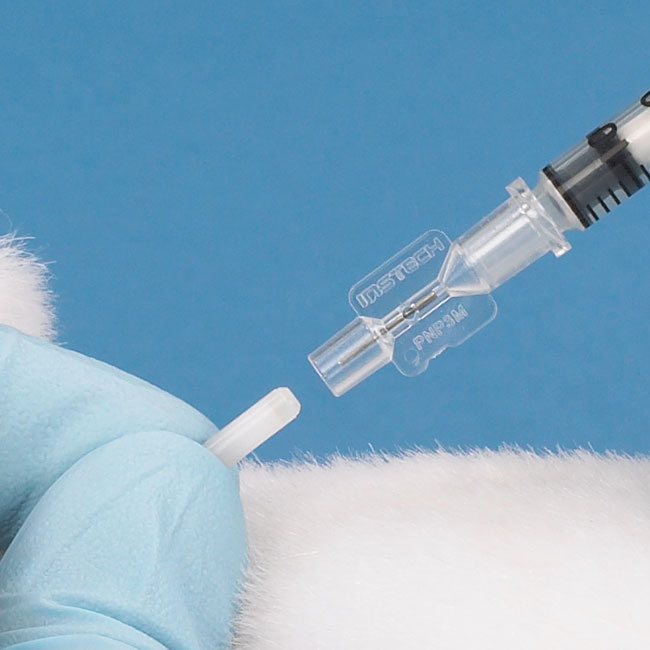

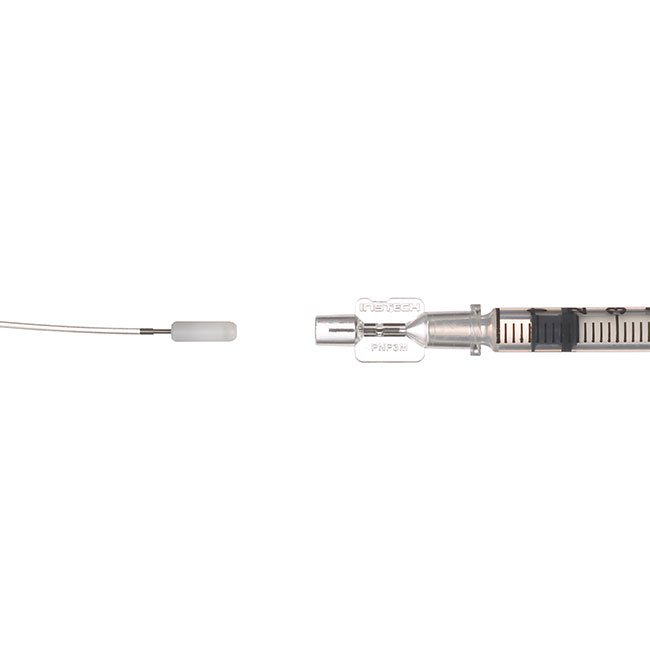

The PinPort™ provides fast, aseptic access to externalized rodent catheters or tubing for dosing or blood sampling. It can reduce study costs and improve compliance with the 3Rs. The system consists of a lightweight port, just 3mm in diameter and 0.1g, and a mating injector which can access the port hundreds of times.

Features and Benefits

  • Fast access
  • Closed system for improved patency
  • Needle free
  • Low cost

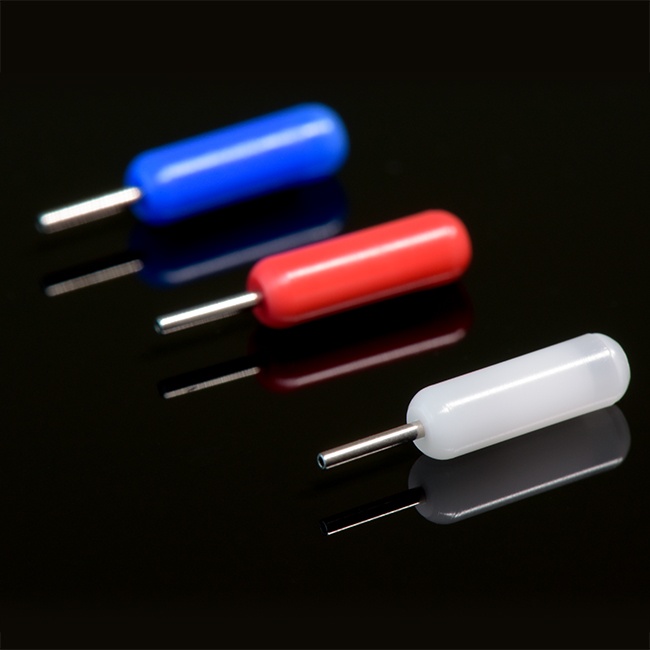

The PinPort™ is available with 22ga, 25ga or 28ga couplers to mate with 3Fr, 2Fr or PE10 catheters, respectively. The white, red or blue colors can be used to distinguish vessels. Use only PNP3M injectors or PinPort connectors to access PinPorts; any other type of needle will damage the port. All parts are provided sterilized by ethylene oxide.

The PinPort™ is designed for intermittent, manual access. It is not designed to be connected to a tether and swivel for remote or continuous access; for tethered applications use the related Vascular Access Button™ for rats and mice.

Animals can be ordered from vendors with the PinPort™ installed at the time of catheterization. Envigo has developed an effective method for anchoring the PinPort™ and has achieved impressive patency: 90% of rat JVCs fully patent (infusion and sampling) after one month, flushing only once per week. Charles River Laboratories also offers rodents with PinPorts™ as an option with their vascular surgeries.



Ordering Information

Part No. Description Qty
PNP3F22 PinPorts, 22ga white, 50 sterile pouches of 5 box of 250
PNP3F22-50 PinPorts, 22ga white, 10 sterile pouches of 5 box of 50
PNP3F22R PinPorts, 22ga red, 50 sterile pouches of 5 box of 250
PNP3F22R-50 PinPorts, 22ga red, 10 sterile pouches of 5  box of 50
PNP3F22B PinPorts, 22ga blue, 50 sterile pouches of 5 box of 250
PNP3F22B-50 PinPorts, 22ga blue, 10 sterile pouches of 5 box of 50
PNP3F25 PinPorts, 25ga white, 50 sterile pouches of 5 box of 250
PNP3F25-50 PinPorts, 25ga white, 10 sterile pouches of 5 box of 50
PNP3F25R PinPorts, 25ga red, 50 sterile pouches of 5 box of 250
PNP3F25R-50 PinPorts, 25ga red, 10 sterile pouches of 5 box of 50
PNP3F28 PinPorts, 28ga white, 50 sterile pouches of 5 box of 250
PNP3F28-50 PinPorts, 28ga white, 10 sterile pouches of 5 box of 50
PNP3M PinPort injectors, 50 sterile pouches of 5 box of 250
PNP3M-50 PinPort injectors, 10 sterile pouches of 5 box of 50

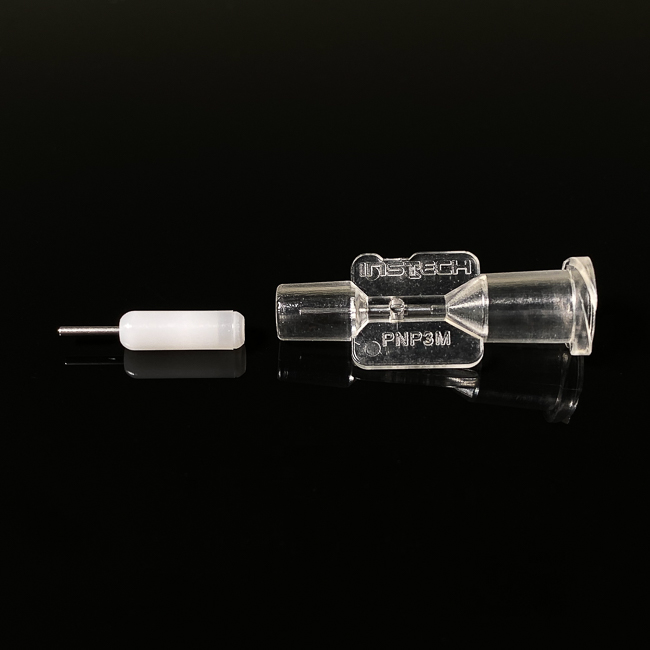

PNP3M-F22 PinPorts, 22ga white, with injectors, sterile box of 20
PNP3M-F22R PinPorts, 22ga red, with injectors, sterile box of 20
PNP3M-F22B PinPorts, 22ga blue, with injectors, sterile box of 20
PNP3M-F25 PinPorts, 25ga white, with injectors, sterile box of 20
PNP3M-F25R PinPorts, 25ga red, with injectors, sterile box of 20
PNP3M-F28 PinPorts, 28ga white, with injectors, sterile box of 20
